Test Date: 2017-12-18 13:58
Analysis date: 2018-08-28 11:12
Analysis date: 2018-08-28 11:12
PROCC1 ModuleFulltestROC_p17_1
Summary 1
| Module | Module | PROCC1 | |
| Grade | Grade | A | |
| ElectricalGrade | Electrical Grade | A | |
| IVGrade | IV Grade | A | |
| ManualGrade | Manual Grade | None | |
| PixelDefects | Pixel Defects - A/B/C | 10 - 1/0/0 | |
| DeadPixels | Dead Pixels | 0 | |
| AddressProblems | Address Problems | 0 | |
| ThresholdDefects | Threshold Defects | 0 | |
| MaskDefects | Mask Defects | 0 | |
| DeadBumps | Dead Bumps | 10 | |
| NoisyPixels | Noise Defects | 0 | |
| TrimProblems | Trim Problems | 0 | |
| PHGainDefects | PH Gain Defects | 0 | |
| PHPar1Defects | PH Parameter1 Defects | 0 |
Summary 2
| TestCenter | Test Center | RBI | |
| TestDate | Test Date | 2017-12-18 | |
| TestTime | Test Time | 13:58 | |
| TestDuration | Duration | 0:11:44 | |
| TempC | Temparature | 17 | °C |
| TBM1 | TBM1 | ok | |
| TBM2 | TBM2 | ok | |
| PxarVersion | pXar | v2.7.6+68 g4612851 | |
| DTB_FW | DTB FW | 4.7 | |
| ModuleIa | Module Ia | 24.1 | mA |
Summary 3
| Noise | Noise | 121.17 | e |
| NoiseROCs | Noise grades | 1/0/0 | |

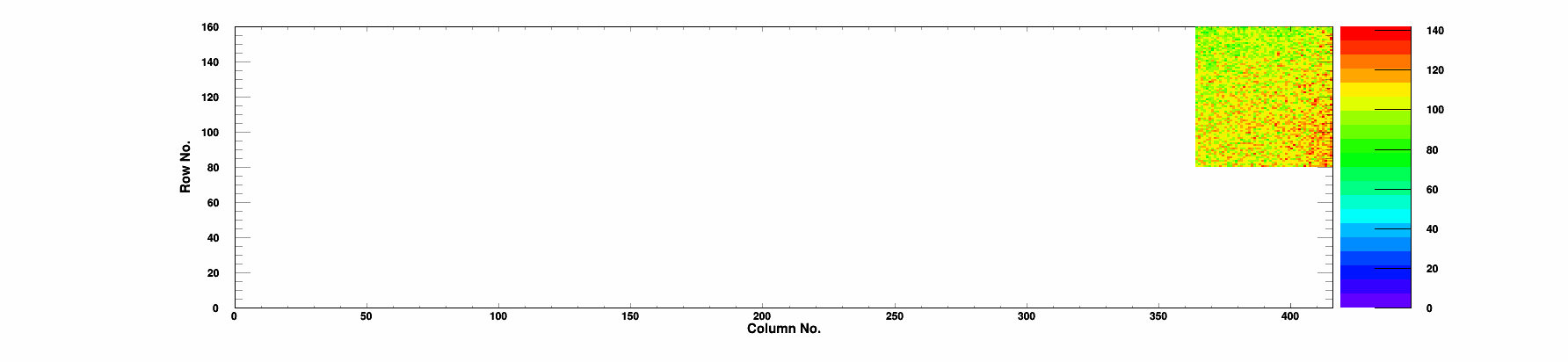

| VcalThrWidth | Vcal Thr. Width | 75.50 | e |
| VcalThrWidthROCs | Vcal Thr. W. grades | 1/0/0 | |
| RelGainWidth | Rel. Gain Width | 0.04 | % |
| RelGainWidthROCs | Rel. Gain W. grades | 1/0/0 | |
| PedestalSpread | Pedestal Spread | 3340.00 | e |
| PedestalSpreadROCs | Ped. Spread grades | 1/0/0 | |
| Parameter1 | Parameter1 | 0.87 | |
| Parameter1ROCs | Par1 grades | 1/0/0 | |
| CurrentAtVoltage150V | I(150 V) | 1.04 | μA |
| CurrentVariation | I(150 V) / I(100 V) | 1.52 |
IVCurve
Digital Current
| Duration | Duration | 0:11:44 | |
| MinCurrent | min. Current | 0.033 | A |
| MaxCurrent | max. Current | 0.037 | A |
Analog Current
| Duration | Duration | 0:11:44 | |
| MinCurrent | min. Current | 0.002 | A |
| MaxCurrent | max. Current | 0.036 | A |
| ModuleIa | Module Ia | 24.1 | mA |
IanaLoss
| IanaLossProblems | Iana problems | No | |
| Mean | mean | 22.50 | |
| Min | min | 22.50 | |
| Max | max | 22.50 | |
| NROCsNotProgrammable | ROCs not programmable | 0 |
Temperature
| Temperature | Temp. while test | 16.69 +/- 0.30 | °C |
| Duration | Duration of test | 0:11:41 |
Summary ROCs
| ROC | Grade | Total | Dead | Mask | Bumps | Trim(Bits) | Address | Noise | Thresh | Gain | Ped | Par1 | Mean noise | Thr [e-] | Thr width | Rel gain width | Ped spread |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Chip 0 |
A
|
10
|
0
|
0
|
10
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
121.17
|
1995 |
76
|
0.038
|
3340
|
Readback par0vd
Readback par1vd
Readback par0va
Readback par1va
Readback par0rbia
Readback par1rbia
Readback par0tbia
Readback par1tbia
Readback par2tbia
GradingParameters
| ModifiedGrading | Modified Grading | False |
TBM
| nTBMs | n | 0 | |
| TBMType | Type | unknown |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 7 | |
| nWarnings | # Warnings | 1 | |
| channel_0_count | Channel 0 | 7 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 0 | |
| message_tokenchain_count | Token Chain Length | 7 |
